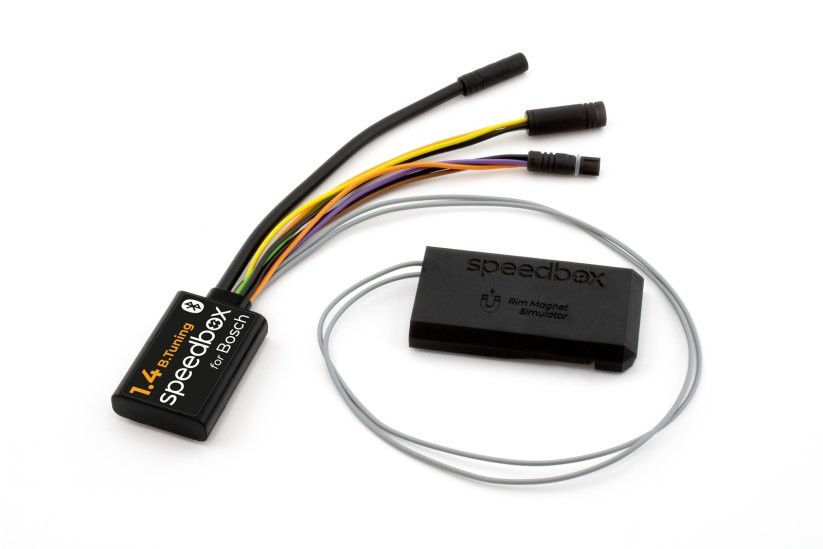

SpeedBox 1.4 B.Tuning for Bosch Performance Line SX with Rim Magnet
Unlock the full potential of your e-bike with the SpeedBox 1.4 B.Tuning.
Designed specifically for Bosch Performance Line SX motors fitted with two upper mounting screws and a rear-wheel rim magnet, this tuning chip removes the standard 25 km/h assistance limit.
The integrated Bluetooth connection also allows you to manage the tuning settings through the SpeedBox Connect mobile app.
Key Features
Bluetooth and SpeedBox Connect
Connect your e-bike to your smartphone using the SpeedBox Connect app. The app allows you to:
Activate or deactivate tuning
Adjust the maximum assistance speed
View riding information
Save trip data
Install compatible SpeedBox updates
Easy Tuning Control
Switch between the standard 25 km/h assistance limit and tuning mode using:
The SpeedBox Connect app
The WALK button
The control buttons in the sequence + – + –
Always activate or deactivate tuning before or after riding, never while the bike is moving.
Straightforward Installation
The SpeedBox connects directly to the motor using compatible original-style connectors. Clear installation instructions and a supporting video are available to guide you through the process.
Compatibility
Compatible Motors
Bosch Performance Line SX
Fourth-generation Smart System
Motor model BDU3142
Motor model BDU3143
Motors mounted using two upper screws
Bikes fitted with a rear-wheel rim or valve magnet
Compatible Displays
Bosch Kiox 300
Bosch Kiox 500
Bosch Intuvia 100
Bosch Purion 200
Bosch Purion 400
Compatible Control Units
Bosch LED Remote
Bosch Mini Remote
Bosch System Controller
Not Compatible With
This SpeedBox is not suitable for:
Bosch Performance Line CX motors
Motors mounted using a different screw arrangement
Bikes with a traditional spoke-mounted speed magnet
Bosch ABS
Enviolo Automatiq systems
Check your motor, magnet type and mounting arrangement carefully before ordering.
Technical Specifications
Preset maximum assistance speed:
35 km/h for EU software or approximately 22 mph for US software.
Bluetooth:
Yes
SpeedBox Connect compatibility:
Yes
Custom speed setting:
Adjustable through the SpeedBox Connect app
Software updates:
Supported through SpeedBox Connect
Minimum distance before installation on a new bike:
10 km
Displayed speed:
The bike’s display may show a value approximately 10 km/h lower than the actual riding speed while tuning is active.
For bikes using US software, the actual assistance limit after activation may be approximately 28 mph. Displayed values may differ.
Important Operating Instructions
To help ensure reliable operation:
Leave the e-bike switched on after each ride until the distance recalculation countdown has finished.
During short stops, keep one foot resting on a pedal to help prevent the countdown from starting unnecessarily.
During longer stops, allow as much of the countdown process as possible to complete.
Do not disconnect or remove the display before the countdown has finished.
Disable automatic Bosch software updates.
Do not perform motor or system software updates while the SpeedBox is installed.
Activate or deactivate tuning only before or after riding.
Do not increase the preset maximum speed above 35 km/h.
Important Legal Notice
This product may cause your e-bike to no longer meet the legal definition of an electrically assisted pedal cycle.
A modified e-bike must not be used on UK public roads, cycle paths or other public places unless it has been correctly registered, insured and approved for that use.
This product is intended for use on private land with the landowner’s permission, where legally permitted. The rider is responsible for complying with all applicable laws and regulations.
